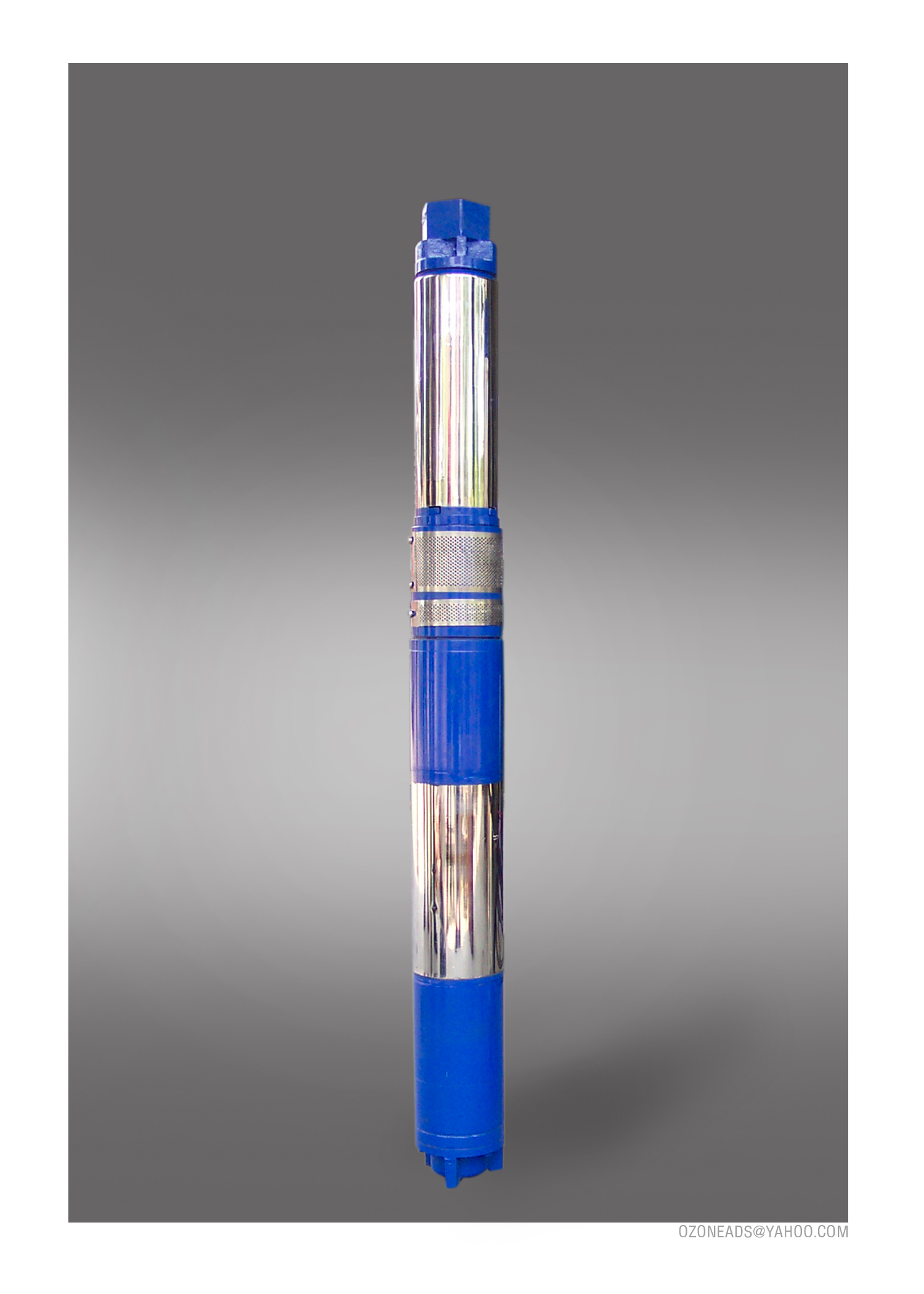

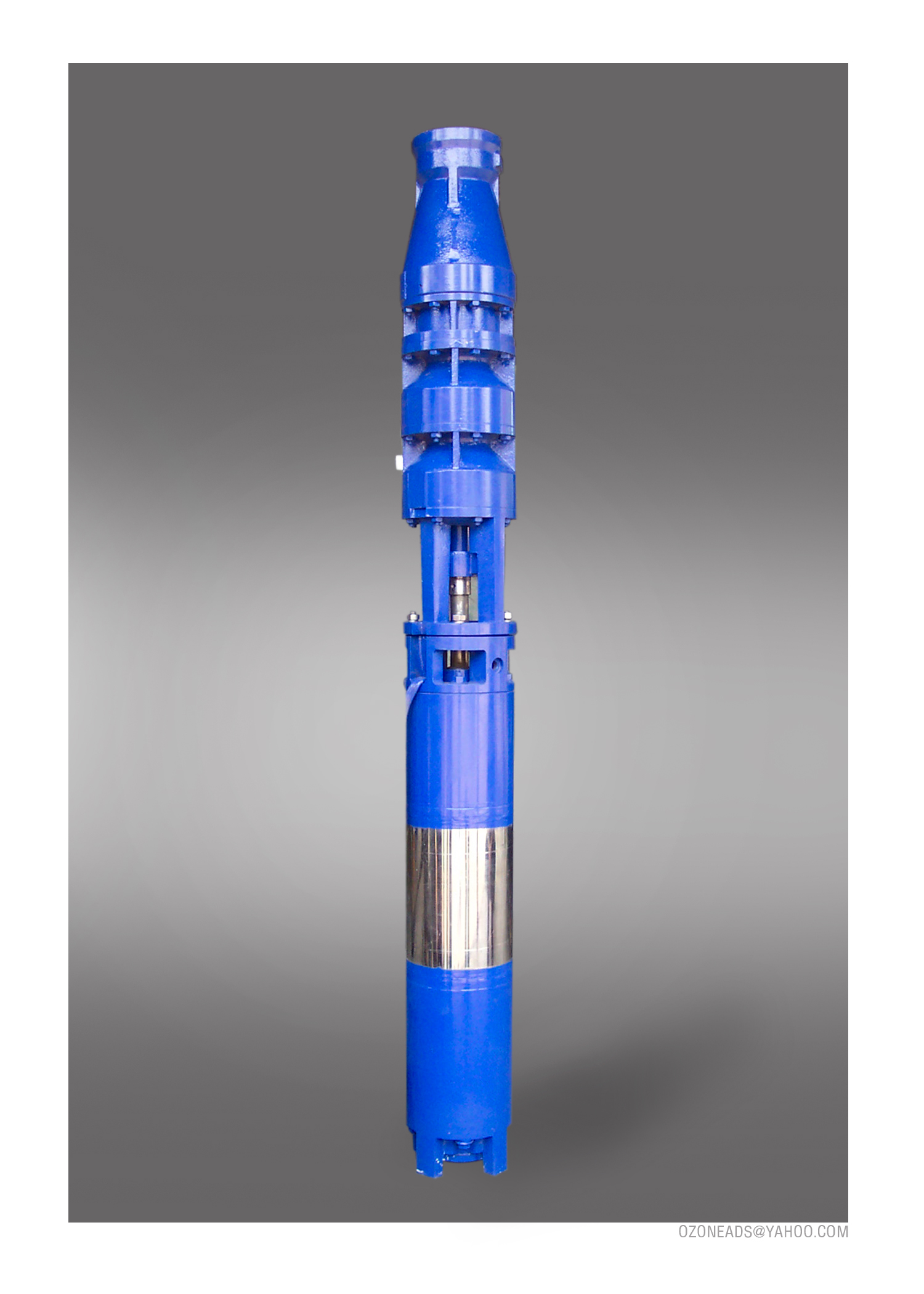

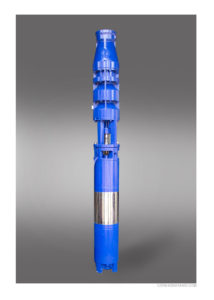

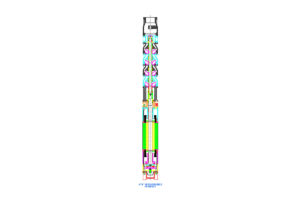

V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]
![V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]](https://www.kalsigroup.com/wp-content/uploads/022-copy.jpg "V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]")
PDF Download(s)
![V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]](https://www.kalsigroup.com/wp-content/uploads/V6V7-V8-Construction-Sectional-View.jpg "V6, V7 & V8 Submersible Pumpsets [For 6 Inch, 7 Inch & 8 Inch Borewells]")
Application
- Domestic Water Supply
- Drip Sprinkle Irrigation
- Agriculture
- High Rise Buildings & Bungalows
- Fountains
- Industries
Salient Features
- Motors designed for operating under wide voltage variation.
- Sleeves and thrust bearings designed for longer life.
- Stainless steel motors,having hydraulically pressed powder coated silicon laminated stampings.
- Powder coated rotors for corrosion resistance.
- Rotors and all rotating components are dynamically balanced for long bearing life and vibration-free running.
- After metallurgical testing, all components are manufactured on modern machines, including CNC machines for reliability and consistent quality.

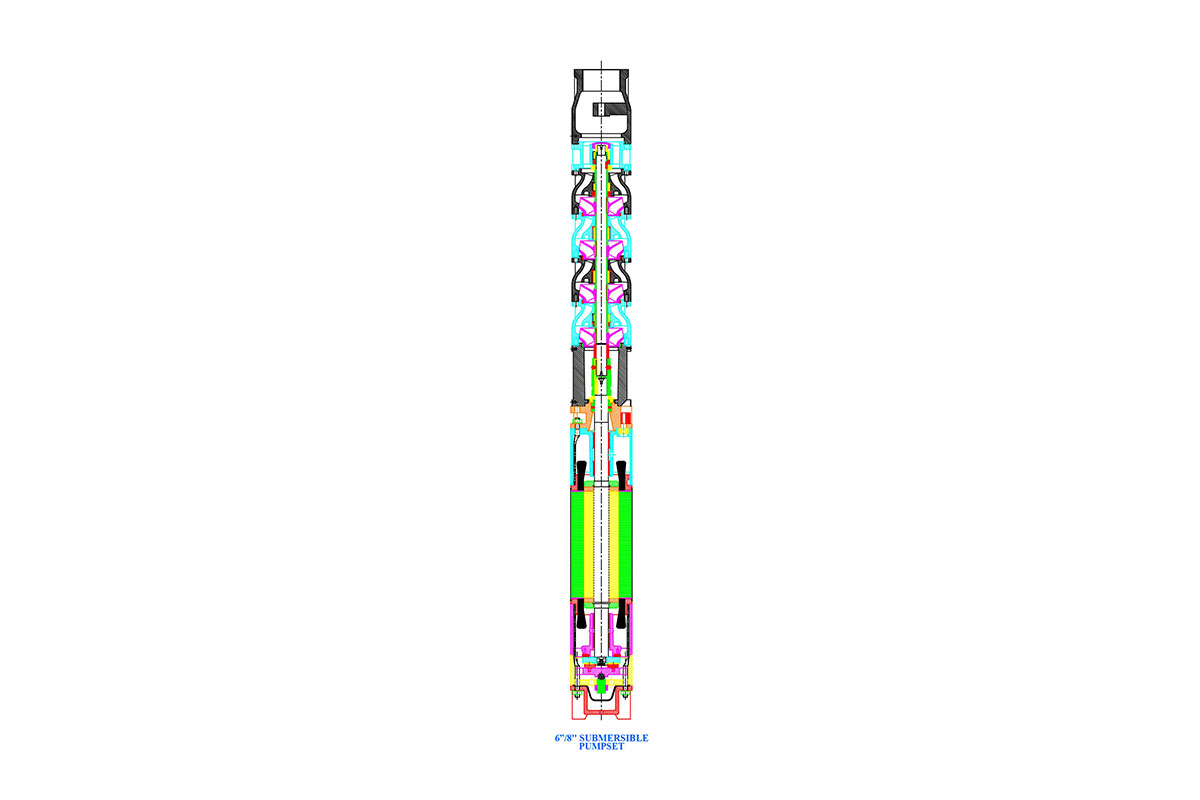

Constructional Details
- Motor Body : Stainless steel.
- Rotor : Powder coated , suitably baked for corrosion resistance under water , dynamically balanced for vibration-free smooth operation.
- Stator : Powder coated for corrosion resistance. To protect windings, thick end laminations are provided.
- Windings : High dielectric PVC/Polyester insulated, water cooled asperIS:8783 (Part4/Sec.1&3)
- Cable Sealing Arrangement : Cable glands,rubber seal and sand guard are provided to protect the motor, from ingress of borewell water and other foreign matter.
- Breather Diaphragm : Optimum size to compensate the volumetric variation of water inside the motor due to change in temperature.
- Impellers : High quality abrasion resistant Stainless steel , dynamically balanced.
- Bowl : Cast Iron as per FG200 Grade of IS:210.
- Journal Bearings : Leaded bronze / Nitrile Rubber water lubricated bushes, having high load bearing capacity.
- Thrust Bearings : Special self-aligning heat-treated S.S. segments are water lubricated to withstand high axial thrust load under adverse conditions.
- Shaft : Hard, annealed Stainless steel shaft of adequate diameter to ensure rigidity is ground to microns.
- Suction Casing : Provided with perforated Stainless steel strainer of adequate size to allow suction of water with minimum friction.
- Casing Wear Rings : High quality abrasion resistant Nitrile rubber.
Application
- Domestic Water Supply
- Drip Sprinkle Irrigation
- Agriculture
- High Rise Buildings & Bungalows
- Fountains
- Industries
Salient Features
- Motors designed for operating under wide voltage variation.
- Sleeves and thrust bearings designed for longer life.
- Stainless steel motors,having hydraulically pressed powder coated silicon laminated stampings.
- Powder coated rotors for corrosion resistance.
- Rotors and all rotating components are dynamically balanced for long bearing life and vibration-free running.
- After metallurgical testing, all components are manufactured on modern machines, including CNC machines for reliability and consistent quality.
Constructional Details
- Motor Body : Stainless steel.
- Rotor : Powder coated , suitably baked for corrosion resistance under water , dynamically balanced for vibration-free smooth operation.
- Stator : Powder coated for corrosion resistance. To protect windings, thick end laminations are provided.
- Windings : High dielectric PVC/Polyester insulated, water cooled asperIS:8783 (Part4/Sec.1&3)
- Cable Sealing Arrangement : Cable glands,rubber seal and sand guard are provided to protect the motor, from ingress of borewell water and other foreign matter.
- Breather Diaphragm : Optimum size to compensate the volumetric variation of water inside the motor due to change in temperature.
- Impellers : High quality abrasion resistant Stainless steel , dynamically balanced.
- Bowl : Cast Iron as per FG200 Grade of IS:210.
- Journal Bearings : Leaded bronze / Nitrile Rubber water lubricated bushes, having high load bearing capacity.
- Thrust Bearings : Special self-aligning heat-treated S.S. segments are water lubricated to withstand high axial thrust load under adverse conditions.
- Shaft : Hard, annealed Stainless steel shaft of adequate diameter to ensure rigidity is ground to microns.
- Suction Casing : Provided with perforated Stainless steel strainer of adequate size to allow suction of water with minimum friction.
- Casing Wear Rings : High quality abrasion resistant Nitrile rubber.
PDF Download(s)

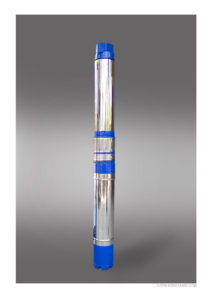

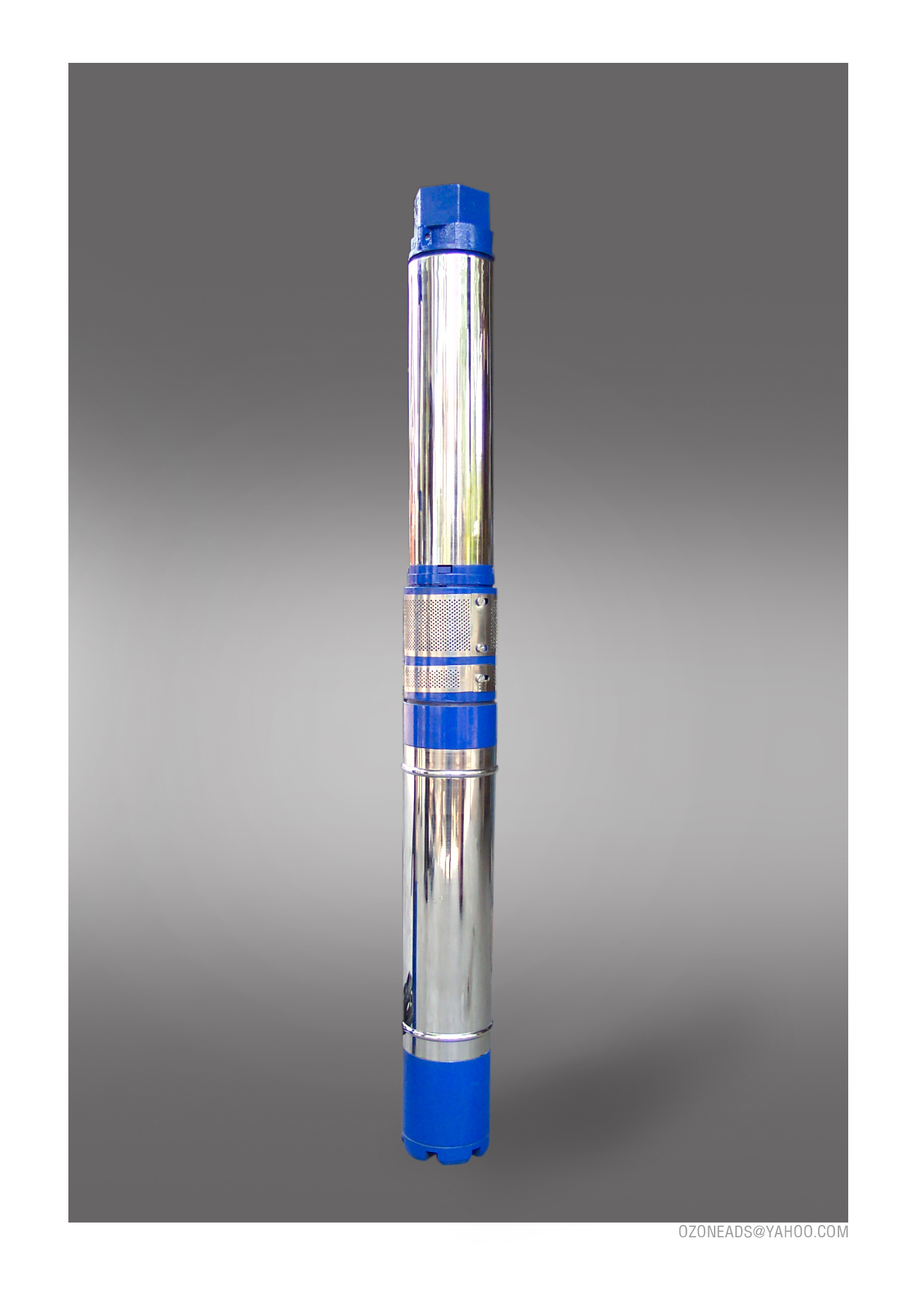

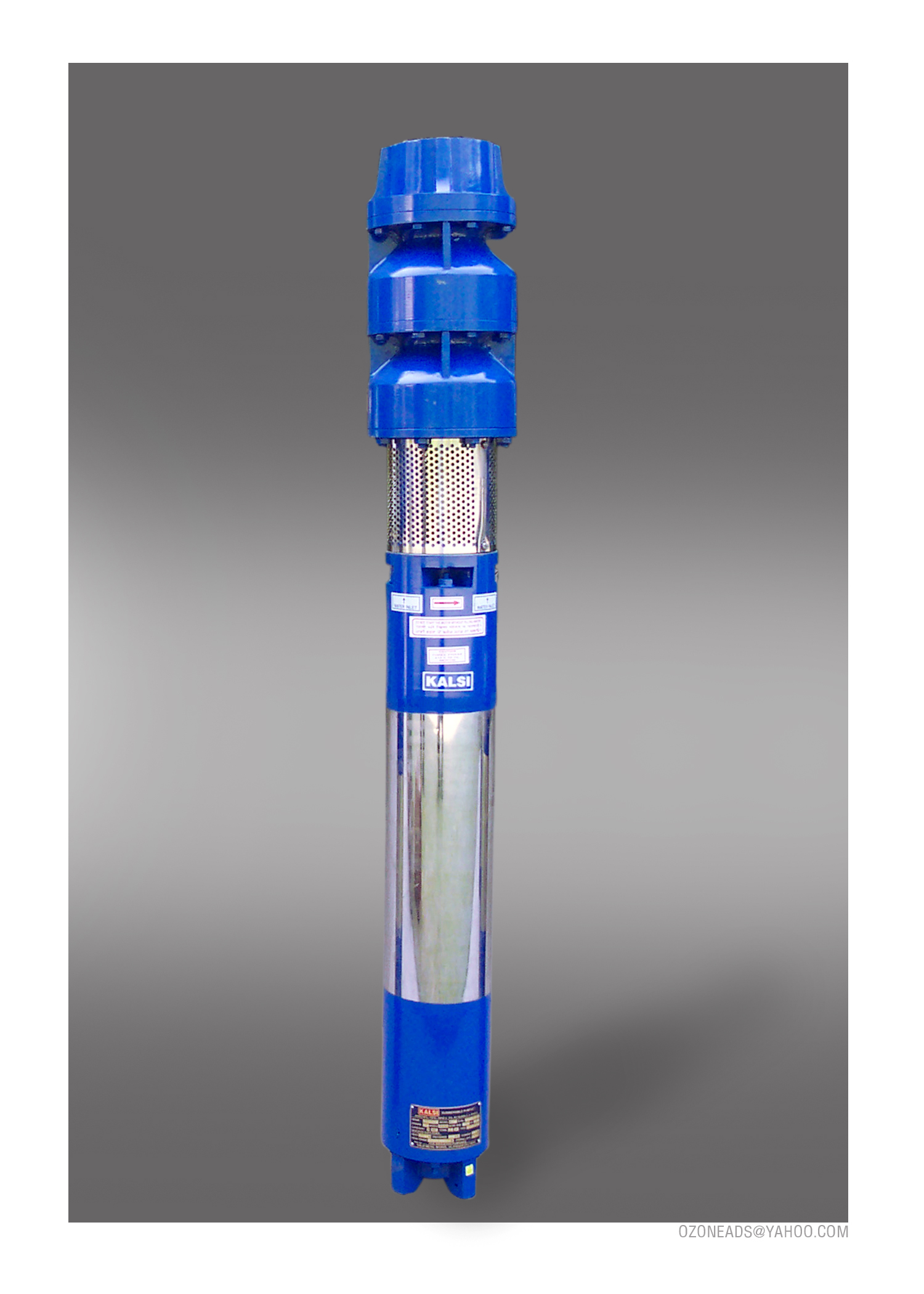

V5 Submersible Pumpset [For 5 Inch Borewells]
Application
- Domestic Water Supply
- Drip Irrigation
- Agriculture / Sprinkle Irrigation
- High Rise Buildings & Bungalows
- Fountains
- Industries
Salient Features
- Motors designed for operating under wide voltage variation.
- Sleeves and thrust bearings designed for longer life.
- Stainless steel motors,having hydraulically pressed powder coated silicon laminated stampings.
- Powder coated rotors for corrosion resistance.
- Rotors and all rotating components are dynamically balanced for long bearing life and vibration-free running.
- After metallurgical testing, all components are manufactured on modern machines, including CNC machines for reliability and consistent quality.

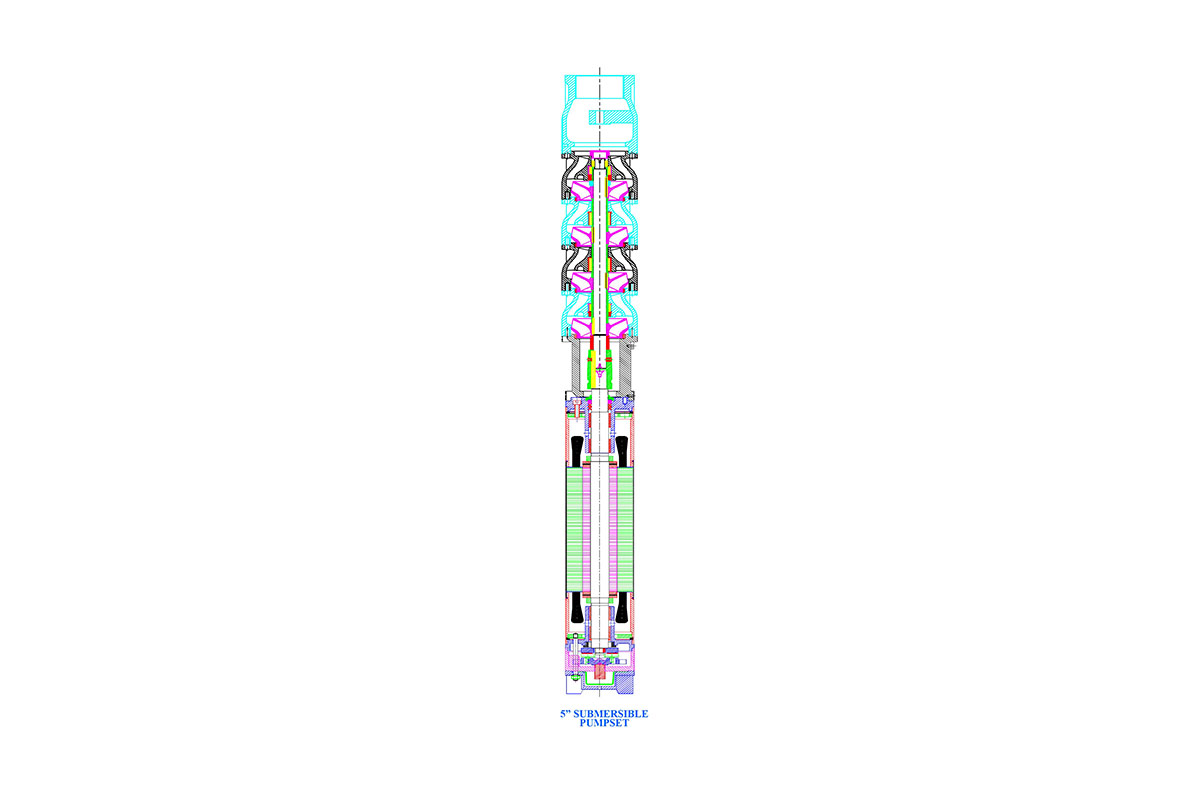

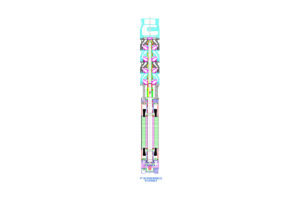

Constructional Details
- Stator : Powder coated for corrosion resistance. To protect windings, thick end laminations are provided.
- Rotor : Suitably baked for corrosion resistance under water, dynamically balanced for vibration-free smooth operation.
- Motor Body : Stainless steel.
- Windings : High dielectric PVC/Polyester insulated, water cooled asperIS:8783 (Part4/Sec.1&3)
- Impellers : High quality abrasion resistant Stainless steel , dynamically balanced.
- Bowl : Cast Iron as per FG200 Grade of IS:210.
- Shaft : Hard, annealed Stainless steel shaft of adequate diameter to ensure rigidity is ground to microns.
- Journal Bearings : Leaded bronze / Nitrile Rubber water lubricated bushes, having high load bearing capacity.
- Thrust Bearings : Special self-aligning heat-treated S.S. segments are water lubricated to withstand high axial thrust load under adverse conditions.
- Breather Diaphragm : Optimum size to compensate the volumetric variation of water inside the motor due to change in temperature.
- Suction Casing : Provided with perforated Stainless steel strainer of adequate size to allow suction of water with minimum friction.
- Casing Wear Rings : High quality abrasion resistant Nitrile rubber.
- Cable Sealing Arrangement : Cable glands,rubber seal and sand guard are provided to protect the motor, from ingress of borewell water and other foreign matter.
![V5 Submersible Pumpset [For 5 Inch Borewells]](https://www.kalsigroup.com/wp-content/uploads/002.jpg "V5 Submersible Pumpset [For 5 Inch Borewells]")
Application
- Domestic Water Supply
- Drip Irrigation
- Agriculture / Sprinkle Irrigation
- High Rise Buildings & Bungalows
- Fountains
- Industries
Salient Features
- Motors designed for operating under wide voltage variation.
- Sleeves and thrust bearings designed for longer life.
- Stainless steel motors,having hydraulically pressed powder coated silicon laminated stampings.
- Powder coated rotors for corrosion resistance.
- Rotors and all rotating components are dynamically balanced for long bearing life and vibration-free running.
- After metallurgical testing, all components are manufactured on modern machines, including CNC machines for reliability and consistent quality.
Constructional Details
- Stator : Powder coated for corrosion resistance. To protect windings, thick end laminations are provided.
- Rotor : Suitably baked for corrosion resistance under water, dynamically balanced for vibration-free smooth operation.
- Motor Body : Stainless steel.
- Windings : High dielectric PVC/Polyester insulated, water cooled asperIS:8783 (Part4/Sec.1&3)
- Impellers : High quality abrasion resistant Stainless steel , dynamically balanced.
- Bowl : Cast Iron as per FG200 Grade of IS:210.
- Shaft : Hard, annealed Stainless steel shaft of adequate diameter to ensure rigidity is ground to microns.
- Journal Bearings : Leaded bronze / Nitrile Rubber water lubricated bushes, having high load bearing capacity.
- Thrust Bearings : Special self-aligning heat-treated S.S. segments are water lubricated to withstand high axial thrust load under adverse conditions.
- Breather Diaphragm : Optimum size to compensate the volumetric variation of water inside the motor due to change in temperature.
- Suction Casing : Provided with perforated Stainless steel strainer of adequate size to allow suction of water with minimum friction.
- Casing Wear Rings : High quality abrasion resistant Nitrile rubber.
- Cable Sealing Arrangement : Cable glands,rubber seal and sand guard are provided to protect the motor, from ingress of borewell water and other foreign matter.
PDF Download(s)
![V5 Submersible Pumpset [For 5 Inch Borewells]](https://www.kalsigroup.com/wp-content/uploads/V5-Construction-Sectional-View.jpg "V5 Submersible Pumpset [For 5 Inch Borewells]")

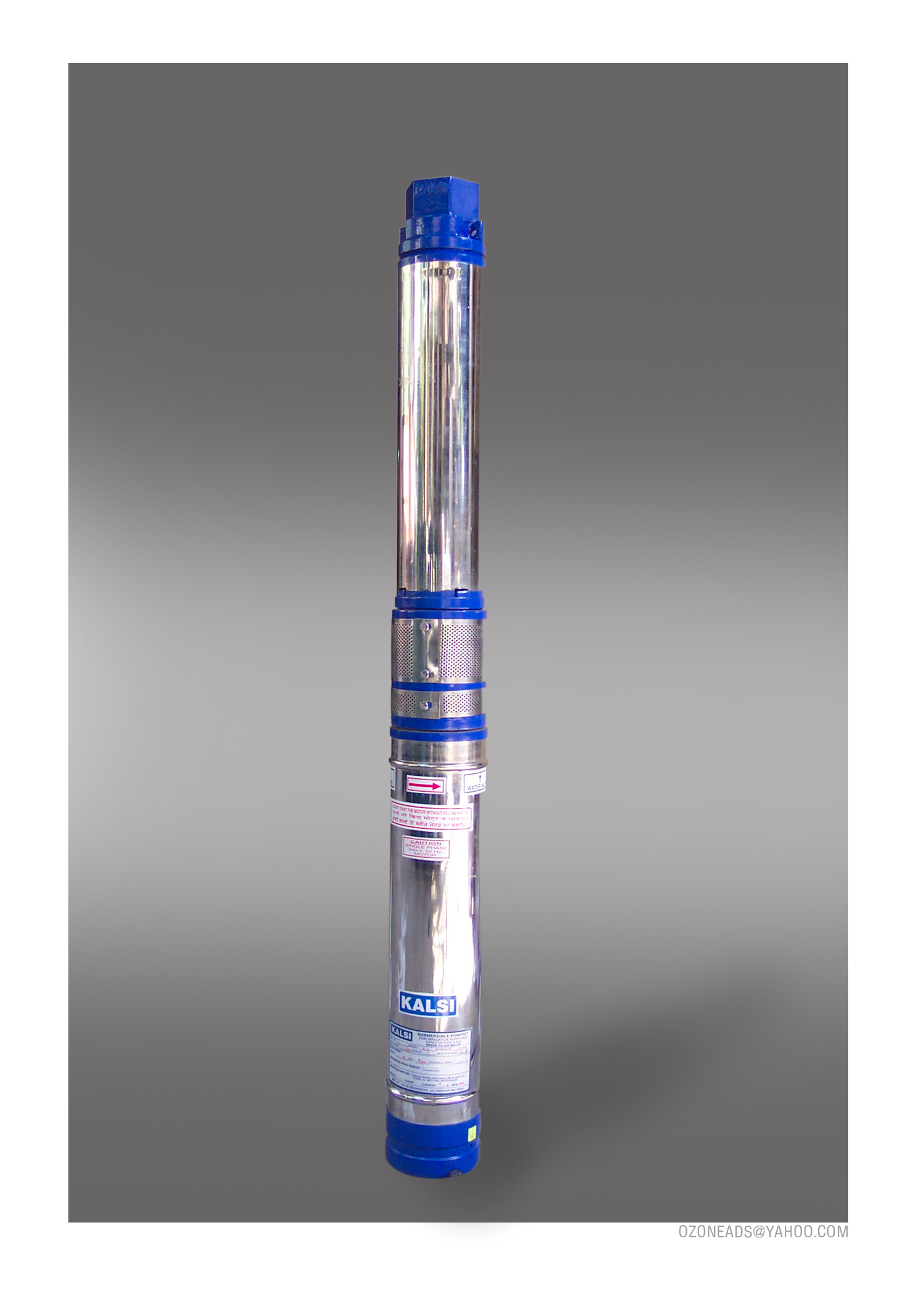

V4 Water Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using polyester insulated copper wire as per IS: 8783 (Part IV, Sec. 1 & 3). Efficient design consumes low power thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are water filled having Leaded bronze / Nitrile rubber water lubricated bushes for high wear resistance and longer life.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- After metallurgical testing, all components are manufactured on modem machines, including CNC machines for reliability and consistent quality.
Constructional Details
- Motor Body : Corrosion-resistant Stainless steel.
- Rotor : Powder coated suitably baked for corrosion-resistant.
- Stator : Powder coated for corrosion resistance.
- Windings : High quality water-resistant polymer insulated copper wire for longer life.
- Breather Diaphragm : Sufficient size to compensate Volumetric variation of water inside the motor due to change in temperature.
- Impeller : High quality abrasion resistant Noryl.
- Journal Bearings : Leaded bronze bushes of high load bearing capacity.
- Bowl : High grade Noryl having 20% glass.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerance.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Oil Seal : Oil seal for protection against sandy water entering the motor.
- Thrust Bearing Set : Made of Carbon and special self-aligning S.S. Segments.It is water lubricated to withstand high axial thrust load under adverse conditions.
![V4 Water Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/024-copy.jpg "V4 Water Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]")
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using polyester insulated copper wire as per IS: 8783 (Part IV, Sec. 1 & 3). Efficient design consumes low power thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are water filled having Leaded bronze / Nitrile rubber water lubricated bushes for high wear resistance and longer life.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- After metallurgical testing, all components are manufactured on modem machines, including CNC machines for reliability and consistent quality.
Constructional Details
- Motor Body : Corrosion-resistant Stainless steel.
- Rotor : Powder coated suitably baked for corrosion-resistant.
- Stator : Powder coated for corrosion resistance.
- Windings : High quality water-resistant polymer insulated copper wire for longer life.
- Breather Diaphragm : Sufficient size to compensate Volumetric variation of water inside the motor due to change in temperature.
- Impeller : High quality abrasion resistant Noryl.
- Journal Bearings : Leaded bronze bushes of high load bearing capacity.
- Bowl : High grade Noryl having 20% glass.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerance.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Oil Seal : Oil seal for protection against sandy water entering the motor.
- Thrust Bearing Set : Made of Carbon and special self-aligning S.S. Segments.It is water lubricated to withstand high axial thrust load under adverse conditions.
PDF Download(s)
![V4 Water Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/V4-Water-Filled-Construction-Sectional-View.jpg "V4 Water Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]")
V4 Oil Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using enamelled copper wire of ‘F’ class insulation. Efficient design consumes low power, thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are filled with special food grade non-toxic dielectric oil, which lubricates the ball bearings. It also offers insulation and thermal properties which increases the reliability of the motor.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- The motors are permanently split capacitor types, which do not require the starting capacitor. Due to this, cost of the Control Panel reduces substantially.
- The cable consists of three-wire removable cable with watertight connector. This helps in changing of the cable, if required, without dismantling the motor.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are designed for a wide voltage range of operation and are suitable for installation in areas experiencing wide voltage fluctuations.

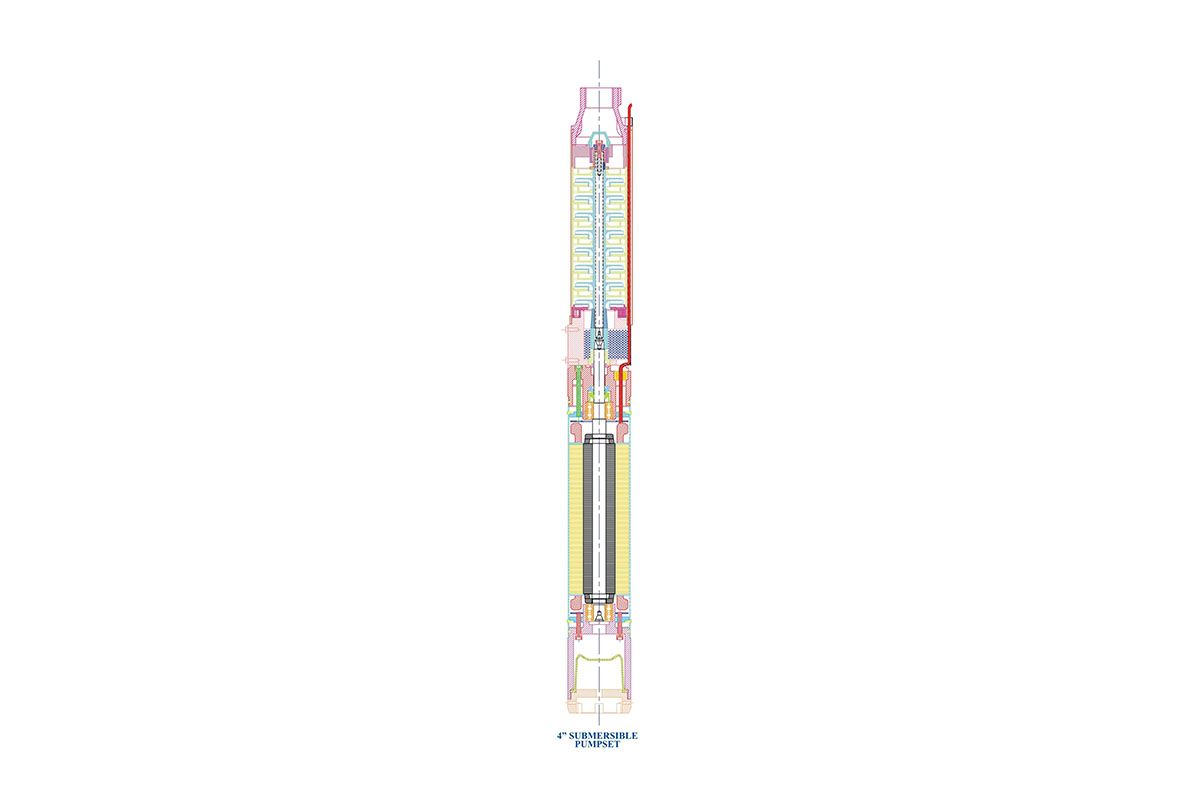

Constructional Details
- Motor Body : Stainless steel.
- Rotor : Aluminium pressure die-cast.
- Stator : Vacuum impregnated with class ‘F’ insulation.
- Windings : Enamelled copper wire with class ‘F’ insulation.
- Cable Sealing Arrangement : Designed such that no borewell water with sand can enter the motor.
- Pressure Equalizing Diaphragm : Sufficient size for expansion of oil inside the motor to prevent loss of oil.
- Impellers : High quality abrasion resistant Noryl.
- Bowls : High grade Noryl.
- Ball Bearings : Heavy duty ball bearings on both ends.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Seal : Mechanical seal/oil seal provided to protect entering of water and sand in motor.
![V4 Oil Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/023-copy.jpg "V4 Oil Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]")
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using enamelled copper wire of ‘F’ class insulation. Efficient design consumes low power, thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are filled with special food grade non-toxic dielectric oil, which lubricates the ball bearings. It also offers insulation and thermal properties which increases the reliability of the motor.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- The motors are permanently split capacitor types, which do not require the starting capacitor. Due to this, cost of the Control Panel reduces substantially.
- The cable consists of three-wire removable cable with watertight connector. This helps in changing of the cable, if required, without dismantling the motor.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are designed for a wide voltage range of operation and are suitable for installation in areas experiencing wide voltage fluctuations.
Constructional Details
- Motor Body : Stainless steel.
- Rotor : Aluminium pressure die-cast.
- Stator : Vacuum impregnated with class ‘F’ insulation.
- Windings : Enamelled copper wire with class ‘F’ insulation.
- Cable Sealing Arrangement : Designed such that no borewell water with sand can enter the motor.
- Pressure Equalizing Diaphragm : Sufficient size for expansion of oil inside the motor to prevent loss of oil.
- Impellers : High quality abrasion resistant Noryl.
- Bowls : High grade Noryl.
- Ball Bearings : Heavy duty ball bearings on both ends.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Seal : Mechanical seal/oil seal provided to protect entering of water and sand in motor.
PDF Download(s)
![V4 Oil Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/V4-Oil-Filled-Construction-Sectional-View.jpg "V4 Oil Filled Submersible Pumpset [For 100 MM (4 Inch) Borewells]")
V3 Water Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using polyester insulated copper wire as per IS: 8783 (Part IV, Sec. 1 & 3 ). Efficient design consumes low power thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are water filled having Leaded bronze / Nitrile rubber water lubricated bushes for high wear resistance and longer life.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- After metallurgical testing, all components are manufactured on modem machines, including CNC machines for reliability and consistent quality.
Constructional Details
- Motor Body : Corrosion-resistant Stainless steel.
- Rotor : Powder coated suitably baked for corrosion-resistant.
- Stator : Powder coated for corrosion resistance.
- Windings : High quality water-resistant polymer insulated copper wire for longer life.
- Breather Diaphragm : Made of Nitrile Rubber to compensate volumetric variation of water inside the motor due to change in temperature.
- Impeller : High quality abrasion resistant Noryl.
- Journal Bearings : Leaded bronze bushes of high load bearing capacity.
- Diffusers : High grade Noryl having 20% glass.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Oil Seal : Oil seal for protection against sandy water entering the motor.
- Thrust Bearing Set : Special self-aligning heat-treated S.S. segments.It is water lubricated to withstand high axial thrust load under adverse conditions.
![V3 Water Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/008-copy.jpg "V3 Water Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]")
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using polyester insulated copper wire as per IS: 8783 (Part IV, Sec. 1 & 3 ). Efficient design consumes low power thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are water filled having Leaded bronze / Nitrile rubber water lubricated bushes for high wear resistance and longer life.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- After metallurgical testing, all components are manufactured on modem machines, including CNC machines for reliability and consistent quality.

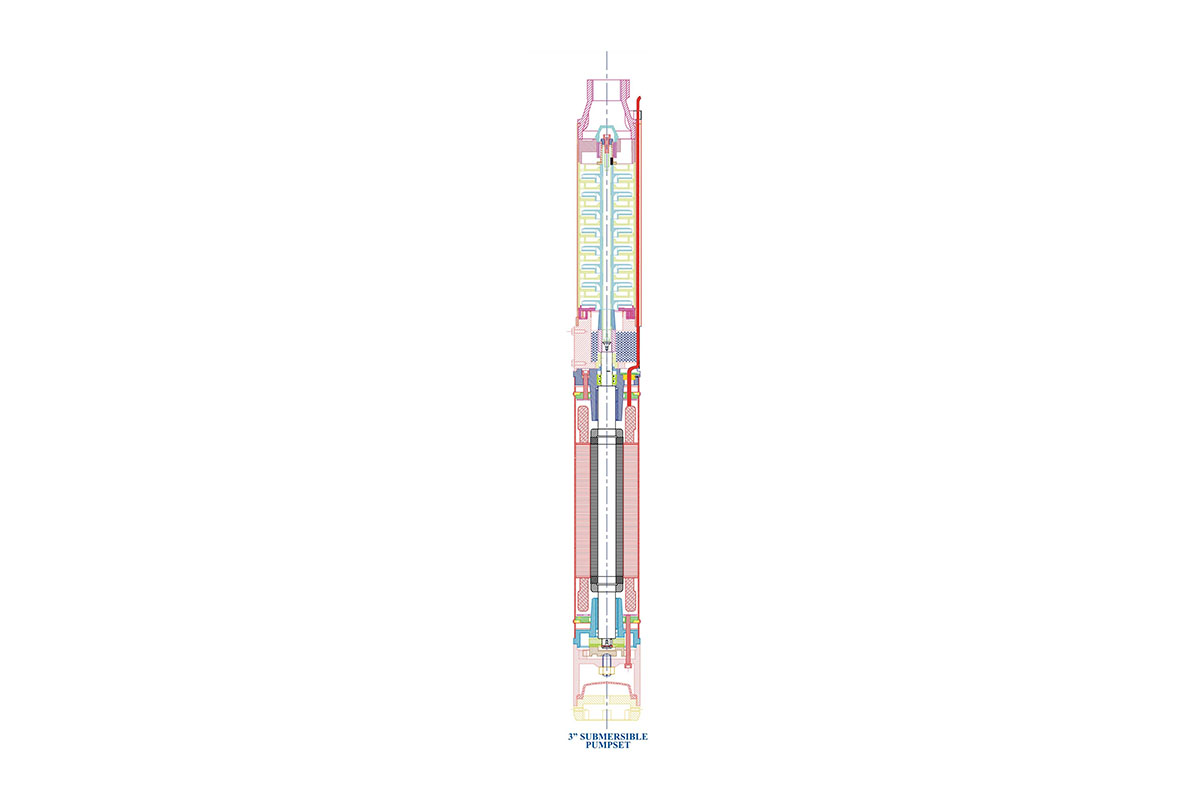

Constructional Details
- Motor Body : Corrosion-resistant Stainless steel.
- Rotor : Powder coated suitably baked for corrosion-resistant.
- Stator : Powder coated for corrosion resistance.
- Windings : High quality water-resistant polymer insulated copper wire for longer life.
- Breather Diaphragm : Made of Nitrile Rubber to compensate volumetric variation of water inside the motor due to change in temperature.
- Impeller : High quality abrasion resistant Noryl.
- Journal Bearings : Leaded bronze bushes of high load bearing capacity.
- Diffusers : High grade Noryl having 20% glass.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Oil Seal : Oil seal for protection against sandy water entering the motor.
- Thrust Bearing Set : Special self-aligning heat-treated S.S. segments.It is water lubricated to withstand high axial thrust load under adverse conditions.
PDF Download(s)
![V3 Water Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/V3-Water-Filled-Construction-Sectional-View.jpg "V3 Water Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]")

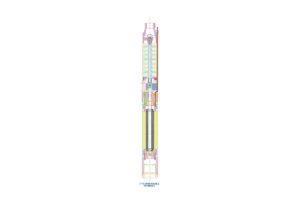

V3 Oil Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using enamelled copper wire of ‘F’ class insulation. Efficient design consumes low power, thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are filled with special food grade non-toxic dielectric oil, which lubricates the ball bearings. It also offers insulation and thermal properties which increases the reliability of the motor.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- The motors are permanently split capacitor types, which do not require the starting capacitor. Due to this, cost of the Control Panel reduces substantially.
- The cable consists of three-wire removable cable with watertight connector. This helps in changing of the cable, if required, without dismantling the motor.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are designed for installation in areas experiencing wide voltage fluctuations.
Constructional Details
- Motor Body : Stainless steel.
- Rotor : Aluminium pressure die-cast.
- Stator : Vacuum impregnated with class ‘F’ insulation.
- Windings : Enamelled copper wire with class ‘F’ insulation.
- Cable Sealing Arrangement : Designed such that no borewell water with sand can enter the motor.
- Breather Diaphragm : Sufficient size for expansion of oil inside the motor to prevent loss of oil.
- Impellers : High quality abrasion resistant Noryl.
- Diffusers : High grade Noryl.
- Ball Bearings : Heavy duty ball bearings on both ends.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Seal : Mechanical seal/oil seal provided to protect entering of water and sand in motor.
Application
- Domestic Water Supply
- Fire Fighting
- Small Farms
- Industries
Salient Features
- Motors are designed using enamelled copper wire of ‘F’ class insulation. Efficient design consumes low power, thereby less cost of operation.
- The motors are compact and light in weight.
- The motors are filled with special food grade non-toxic dielectric oil, which lubricates the ball bearings. It also offers insulation and thermal properties which increases the reliability of the motor.
- Stator of the motor is made of corrosion-resistant Stainless steel.
- The motors are permanently split capacitor types, which do not require the starting capacitor. Due to this, cost of the Control Panel reduces substantially.
- The cable consists of three-wire removable cable with watertight connector. This helps in changing of the cable, if required, without dismantling the motor.
- All rotating components and assemblies are dynamically balanced to ensure long bearing life and vibration free smooth operation.
- The motors are designed for installation in areas experiencing wide voltage fluctuations.

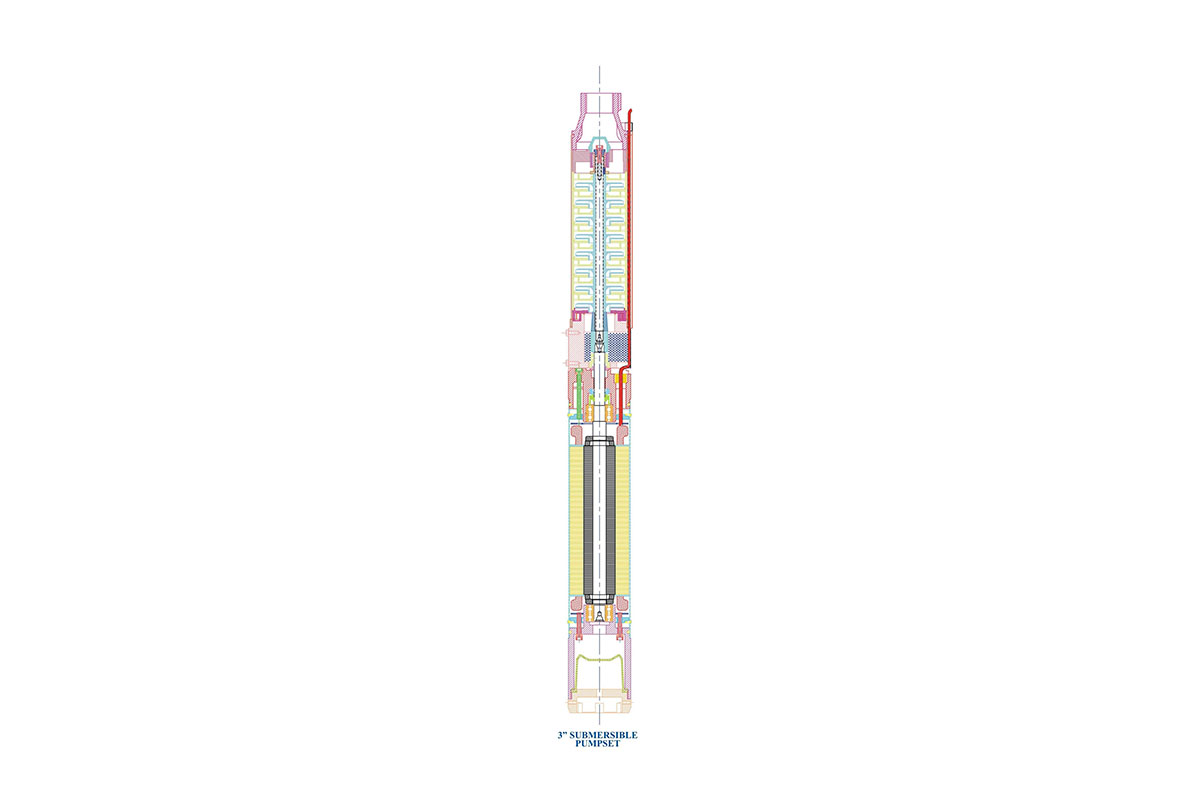

Constructional Details
- Motor Body : Stainless steel.
- Rotor : Aluminium pressure die-cast.
- Stator : Vacuum impregnated with class ‘F’ insulation.
- Windings : Enamelled copper wire with class ‘F’ insulation.
- Cable Sealing Arrangement : Designed such that no borewell water with sand can enter the motor.
- Breather Diaphragm : Sufficient size for expansion of oil inside the motor to prevent loss of oil.
- Impellers : High quality abrasion resistant Noryl.
- Diffusers : High grade Noryl.
- Ball Bearings : Heavy duty ball bearings on both ends.
- Shaft : Stainless steel of adequate size to ensure rigidity and ground to close tolerances.
- Suction Casing : Provided with perforated stainless steel strainer with minimum friction.
- Seal : Mechanical seal/oil seal provided to protect entering of water and sand in motor.
PDF Download(s)
![V3 Oil Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]](https://www.kalsigroup.com/wp-content/uploads/V3-Oil-Filled-Construction-Sectional-View.jpg "V3 Oil Filled Submersible Pumpset [For 80 MM (3 Inch) Borewells]")
