Single Phase Monoblock Pumps

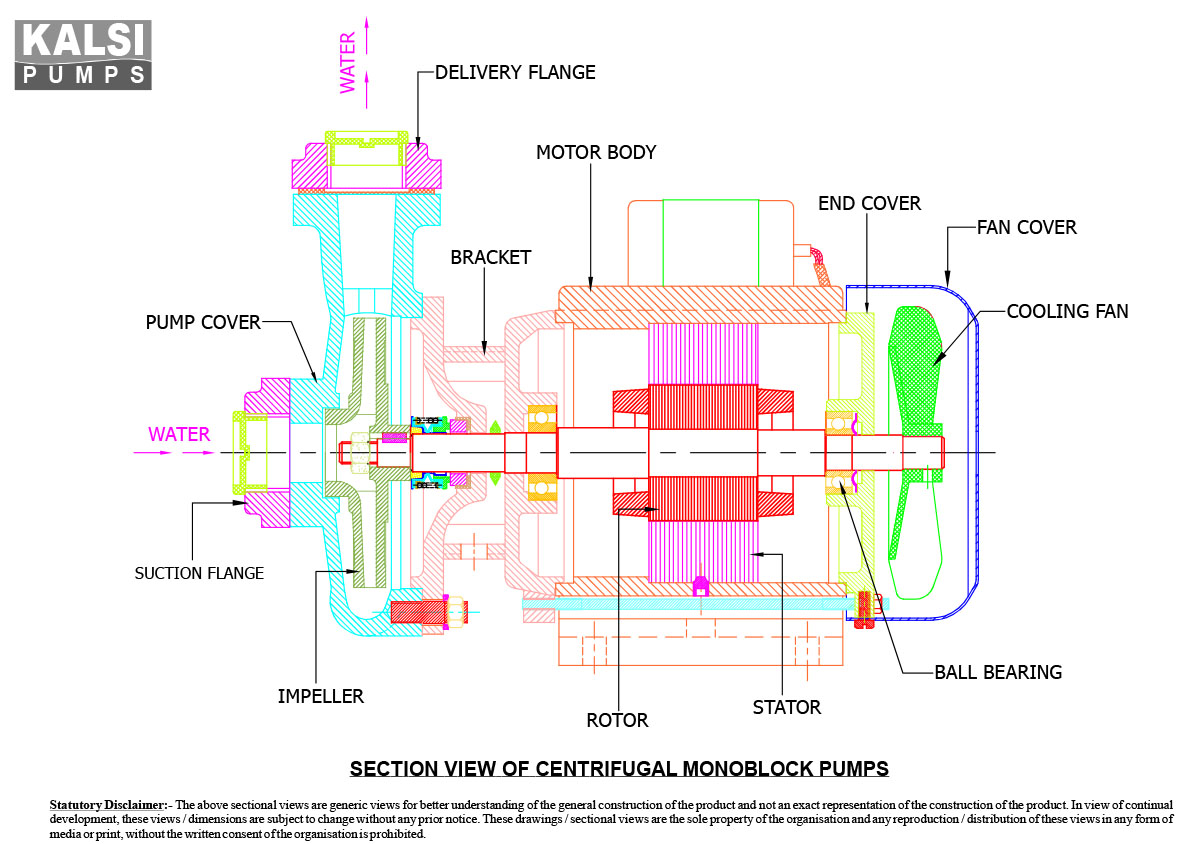

KALSI CENTRIFUGAL Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand CENTRIFUGAL Monoblock Pumps are available in 0.5 HP, 1.0 HP, 1.5 HP and 2.0 HP, 3000 RPM. These pumps are manufactured as per IS 9079 (Electric Monoset Pumps) having motor as per IS:14582 and are used for clear water.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubricated anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Thermal overload protector (T.O.P.) is provided for safety of motor.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply is single phase, 220V (50 Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V (Single Phase), AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubricated anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Thermal overload protector (T.O.P.) is provided for safety of motor.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply is single phase, 220V (50 Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V (Single Phase), AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

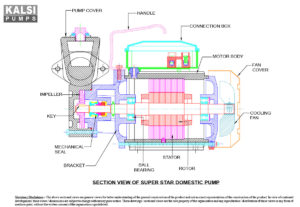

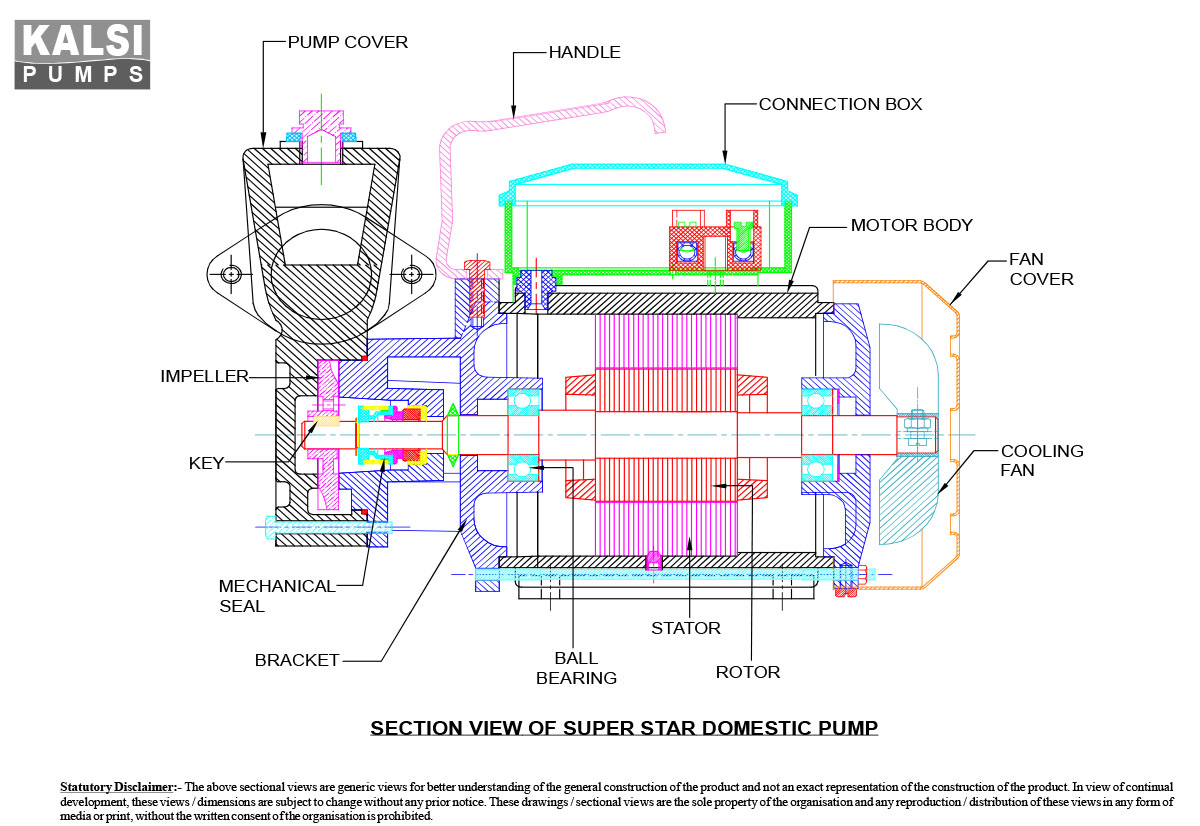

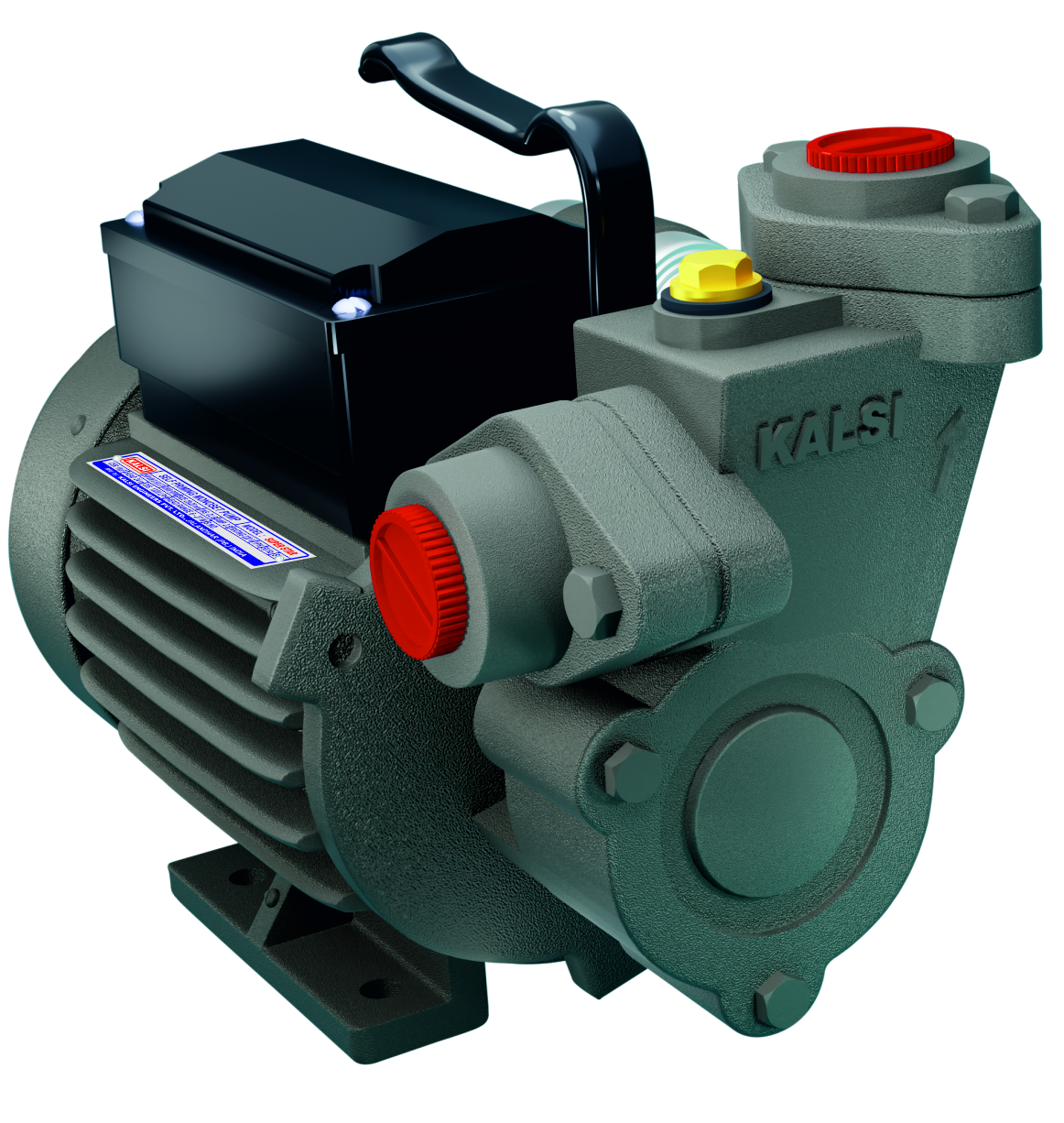

KALSI SUPER STAR Self Priming Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand SUPER STAR Self Priming Monoblock Pumps, are available in 0.5 HP and 1.0 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

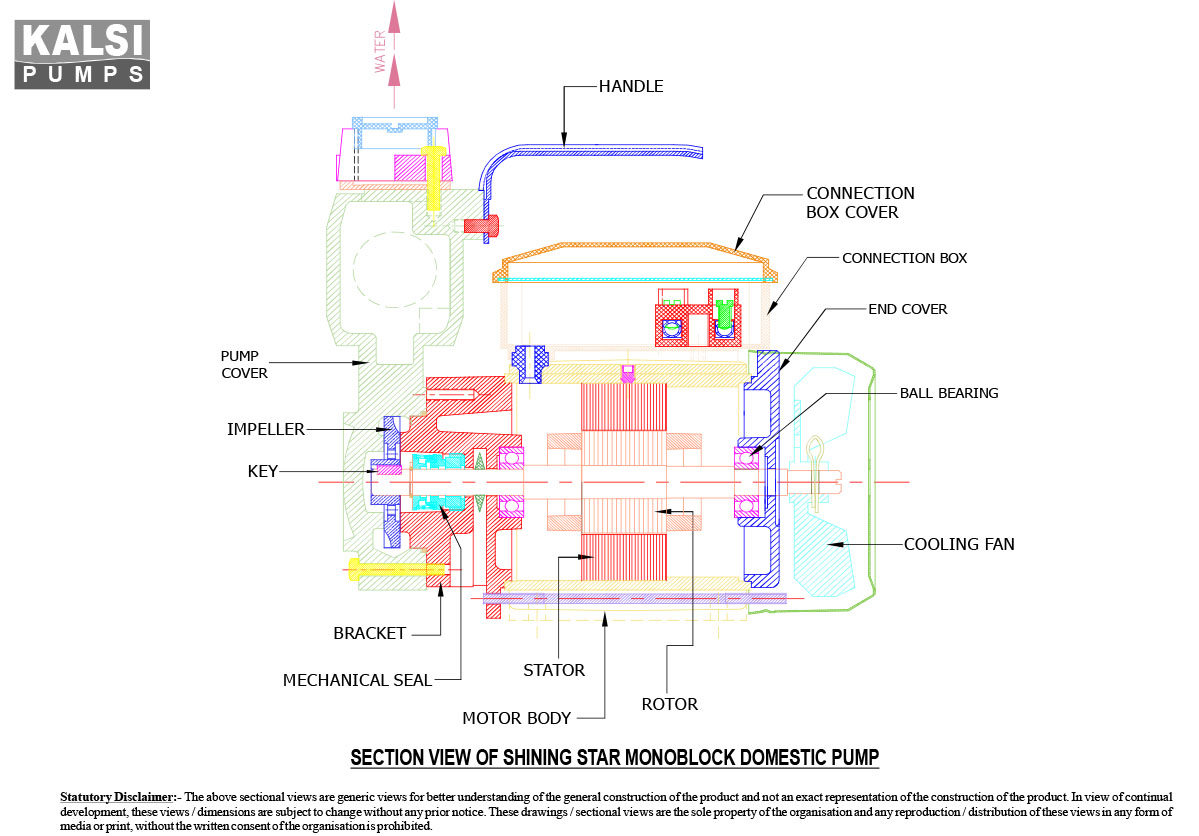

KALSI SHINING STAR Self Priming Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand SHINING STAR Self Priming Monoblock Pumps, are available in 0.5 HP and 1.0 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

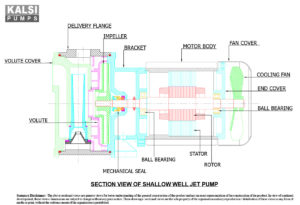

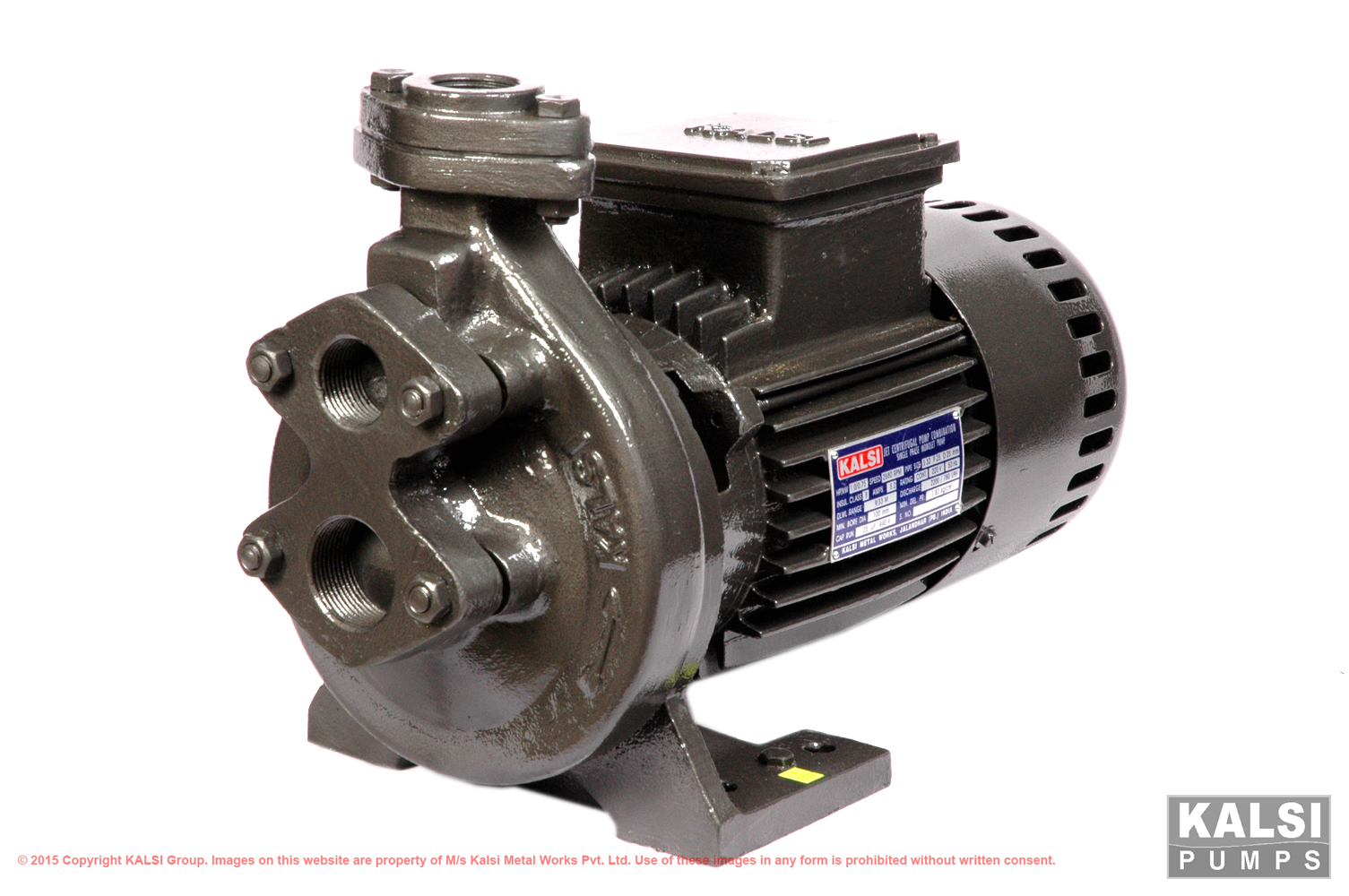

KALSI SHALLOW WELL Self Priming Jet Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand SHALLOW WELL Self Priming Jet Pumps, are available in 0.5 HP and 1.0 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’.
Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
Plastic/Cast iron impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 180V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’.
Motor windings are vacuum impregnated with synthetic varnish for better moisture resistance.
Plastic/Cast iron impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 180V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with insulation class ‘B’.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

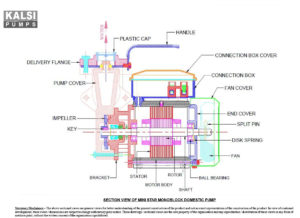

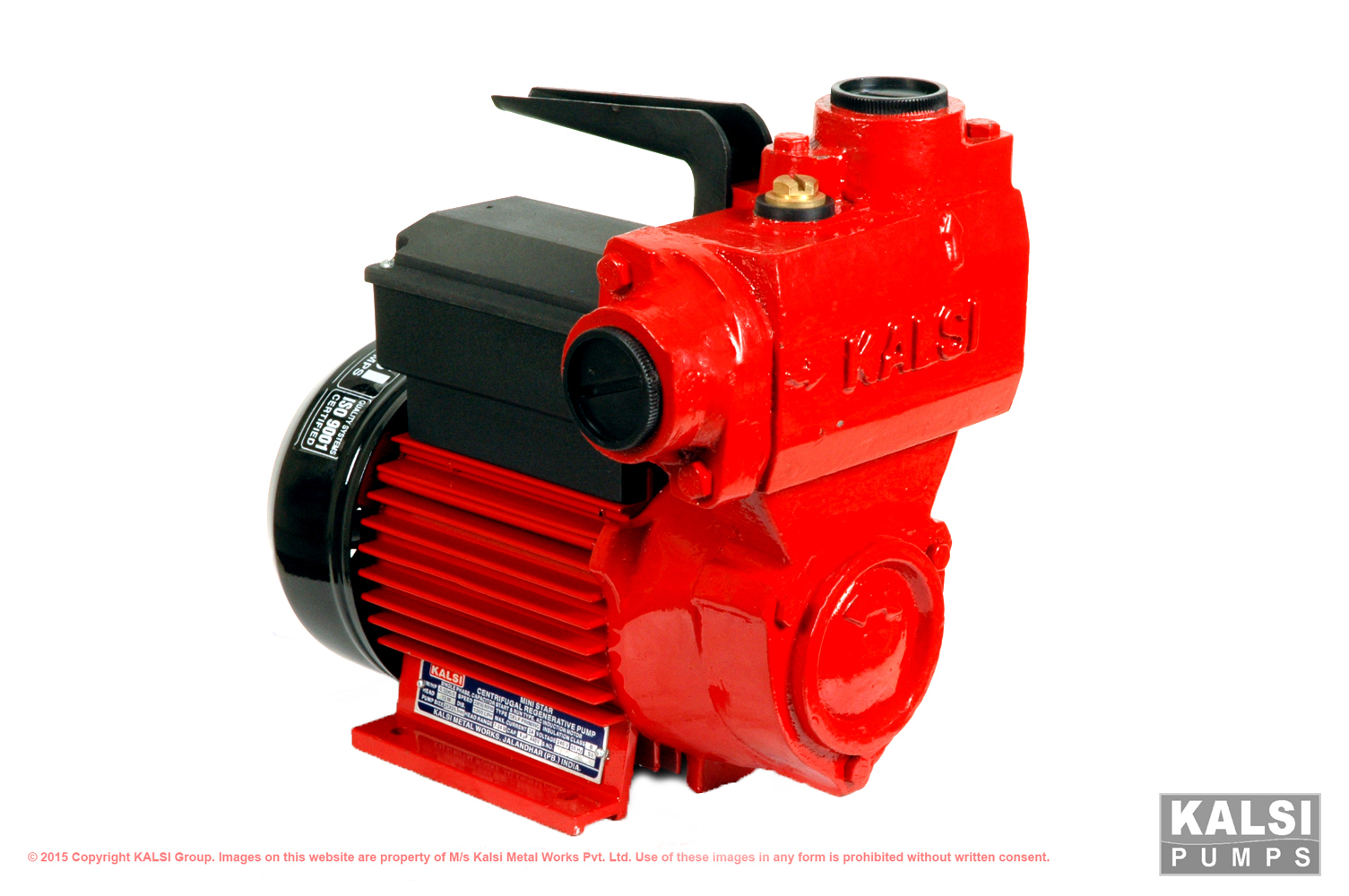

KALSI MINI STAR Self Priming Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand MINI STAR Self Priming Monoblock Pumps, are available in 0.5 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effe- tive sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

‘KALSI’ brand MINI STAR Self Priming Monoblock Pumps, are available in 0.5 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effe- tive sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

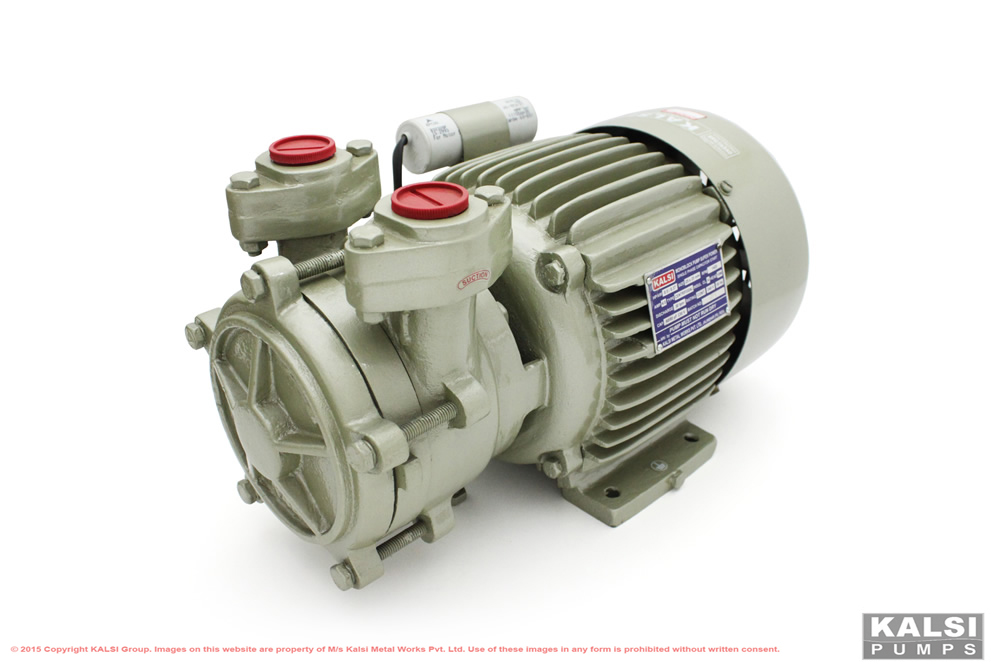

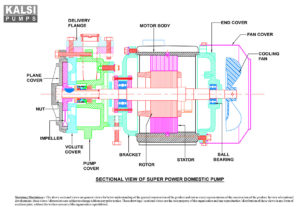

KALSI SUPER POWER Self Priming Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand SUPER POWER Self Priming Monoblock Pumps, are available in 0.5 HP and 1.0 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effe- tive sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effe- tive sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart

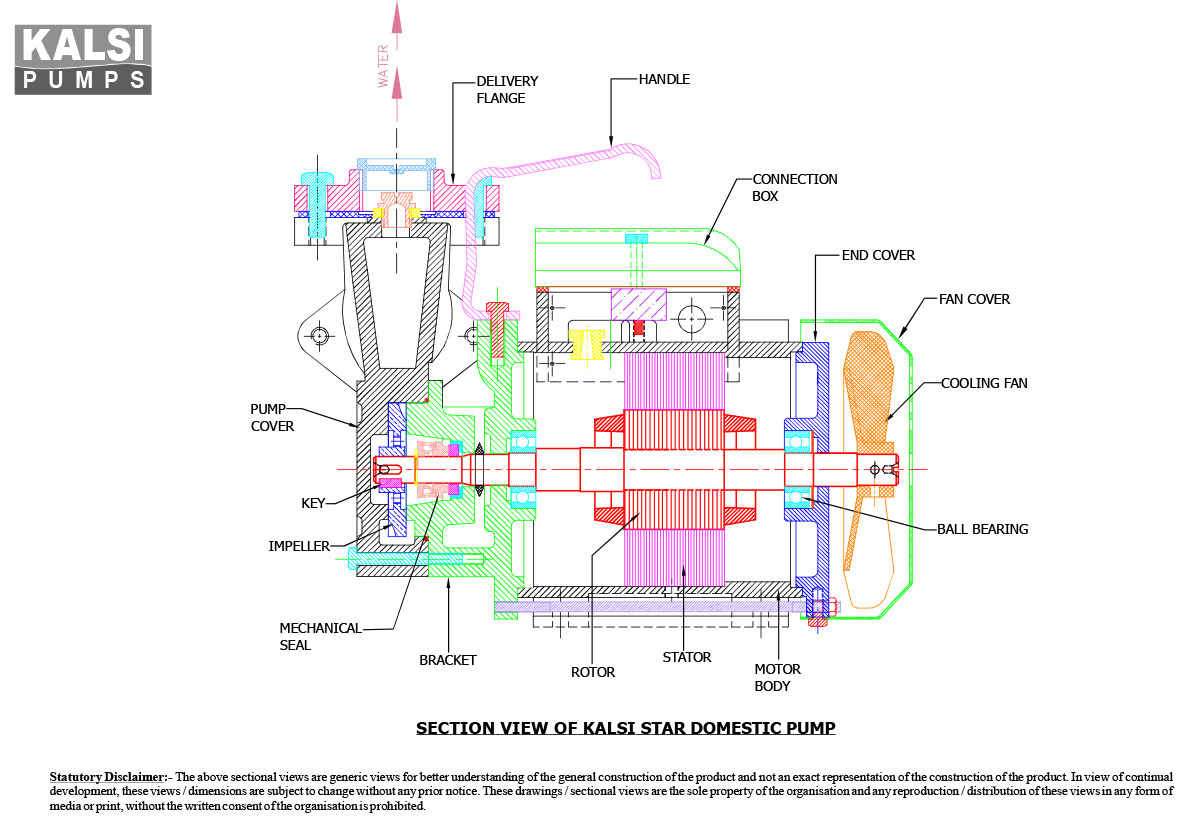

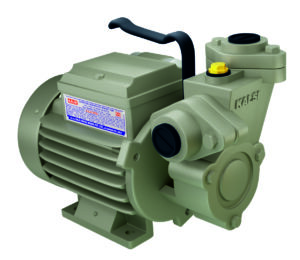

KALSI STAR Self Priming Monoblock Pumps

PDF Download(s)

Performance Chart

‘KALSI’ brand KALSI STAR Self Priming Monoblock Pumps, are available in 0.5 HP and 1.0 HP, 3000 RPM. This pump is manufactured as per IS 8472 (Centrifugal Regenerative Pumps) and used for Water supply.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and
axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the
capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to
return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

Application

Residential bungalows
Small Farms
Car washing
Construction sites
Lawns & gardens
Hotels & Hospitals

Salient Features

Pump casings, Motor bodies and End covers are made of close grained cast iron.
The motor is totally enclosed fan cooled (TEFC) type as per as per grade FG 200 of IS: 210.
Insulation Class ‘B’ insulation.
Motor windings are vacuum inpregnated with synthetic varnish for better moisture resistance.
High tensile brass forged impeller used to give troublefree service.
Better insulating materials used to withstand temperature rise.
Superior mechanical shaft seal for longer life and effective sealing against water leakage.
Grease lubrication anti-friction double sealed ball bearings are fitted to withstand radial and
axial loads.
Running capacitor enclosed in the connection box to avoid problem of water entering in the
capacitor and transit damages.
Thermal overload protector (T.O.P.) is provided for safety of motor of the pumpset.
Spring loaded non-return valve ensures leak-proof sealing which does not allow water to
return in the suction line.
The motors are of the Capacitor Start & Run (CSR) design giving high starting torque.
Input supply condition is single phase, 220V (50Hz) AC Supply.
Designed to withstand wide voltage fluctuations of 160V – 240V, AC Supply.

Constructional Details

Shaft : The shaft is made of stainless steel as per IS:6603 accurately ground finished to close tolerances to ensure long life of bearings.
Mechanical seal : Rotary seal of high precision having fine lapped surface is used. Its spring-loaded carbon face seals the stationary ceramic face for effective sealing against water leakage.
Motor frame : High tensile cast iron and is totally enclosed fan type. Cooling ribs are provided to facilitate heat dissipation to keep the body cool.
Rotor : Die cast dynamically balanced rotor for vibration free noiseless running.
Windings : Enamelled copper wire with class ‘B’ insulation.
Ball bearings : Heavy duty double sealed ball bearings fitted to ensure longer life.

PDF Download(s)

Performance Chart
